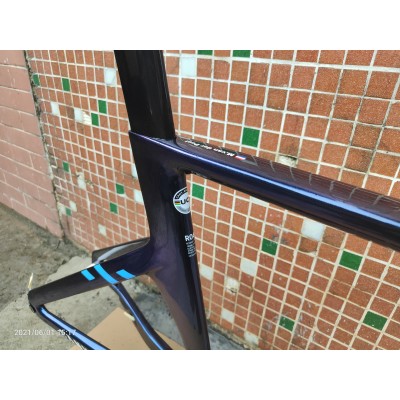

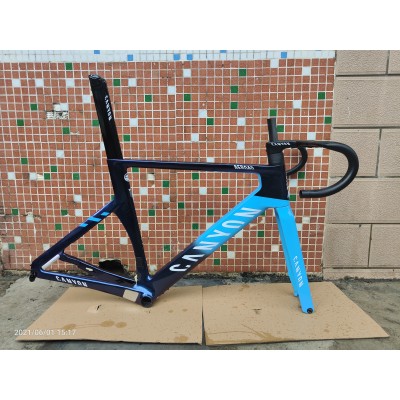

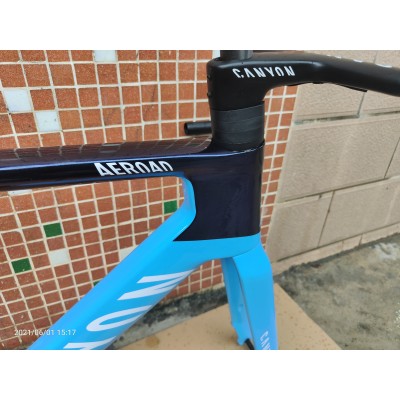

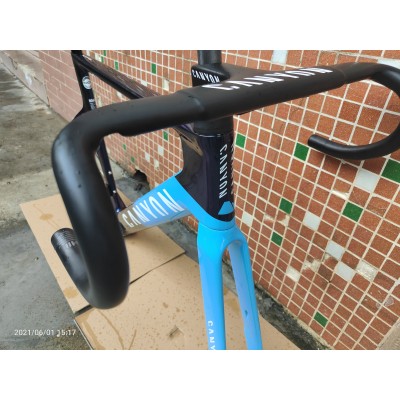

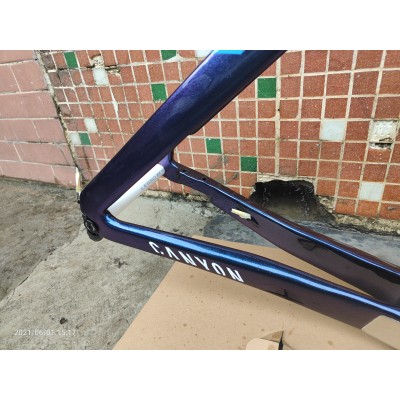

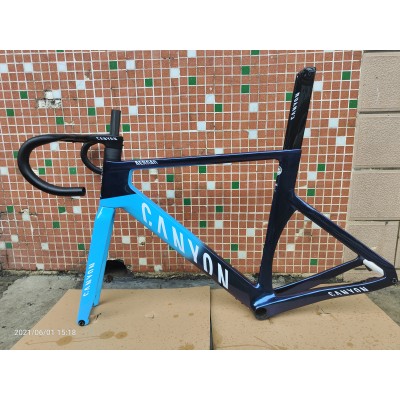

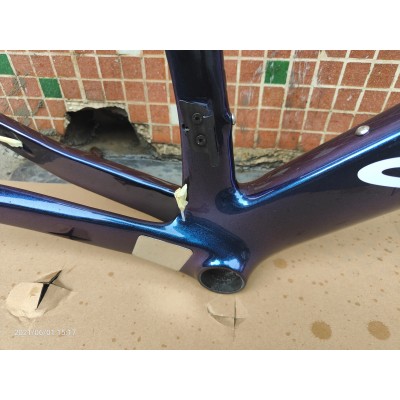

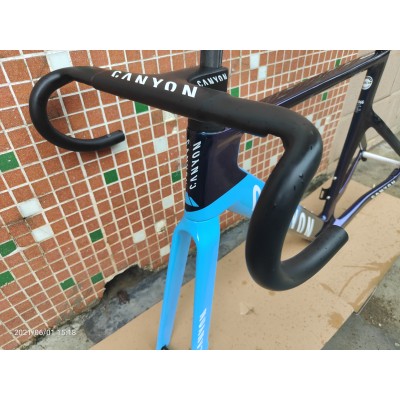

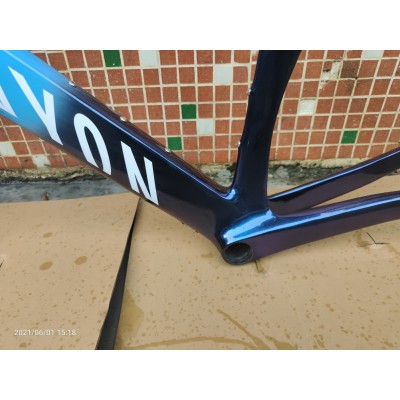

Carbon Fiber Road Bike Bicycle Frame Canyon 2021 New Aeroad Disc

Carbon Fiber Road Bike Bicycle Frame Canyon 2021 New Aeroad Disc-Canyon Aeroad 2021
Click image for Gallery
  • ბრენდები CANYON
  • პროდუქტის კოდი: MPN21CY004SKU
  • ხელმისაწვდომობა: 996
  • $759.00
  •

ხელმისაწვდომია პარამეტრები

+
-


წარწერები: Carbon Fiber Road Bike Bicycle Frame Canyon 2021 New Aeroad Disc


Frame Size

XXSXSSML
Stack
A498mm520mm539mm560mm580mm
Reach
B372mm378mm390mm393mm400.5mm
Head tube Length
C86mm106mm123mm143.5mm164.3mm
Head tube Angle
D70.5°71°
72°
73°
73°
BB Drop
E73mm
73mm
73mm
73mm
73mm
Fork Length(full)
F382mm382mm
382mm
382mm
382mm
Fork Rake/Offset
G42mm42mm
42mm
42mm
42mm
Front Center
H571mm576mm583mm588mm601mm
Chain-Stay Length
I410mm410mm
410mm
410mm
410mm
Wheelbase
J970mm975mm982mm988mm1001mm
Top Tube Length(horizontal)
K514mm514mm
533mm545mm562mm
Seat Tube Length
L444mm474mm504mm534mm565mm
Seat-Tube Angle
M72°73°73°73°
73°

* Warranty: All carbon frames we sold are covered by a 2 year limited warranty against manufacturing defect. Click here for more

* Material: All our carbon frames/forks are made of 100% imported Toray T1100 from Japan Click here for more

* Frameset Package: include frame, fork, carbon handlebar, carbon stem, carbon seat post, clamp, headset, rear hanger, thru axle.

* Packaging dimension: 85*25*75cm, approx weight(including Packag): 5.5Kg View sample

* Head tube size: 1 1/8 to 1 1/2 tapered integrated , upper: 42mm , lower: 47mm View sample

* Free offer of headset spacers(if need). View sample

* BB types available: BB86Please see drop-down menu for available options offer on each particular frame.

* Internal cable routings: For rear brake, front and rear derailleurs View sample

*All Road bike frames accept 700c wheels with 142mm rear hub spacing, fully compatible with Sram, Campagnolo & Shimano (DI2 and Mechanical) drivetrains.

* Customs tax & Import duty service: We can provide customs clearance service for the shipment import & export, as well as advance payment of import duties of taxes, THC, and tax refund Contact us for more

* Images color deviation: All frame photos are taken from actual frames. Color deviation may appear slightly differently on your monitor depending on type of monitor used.
